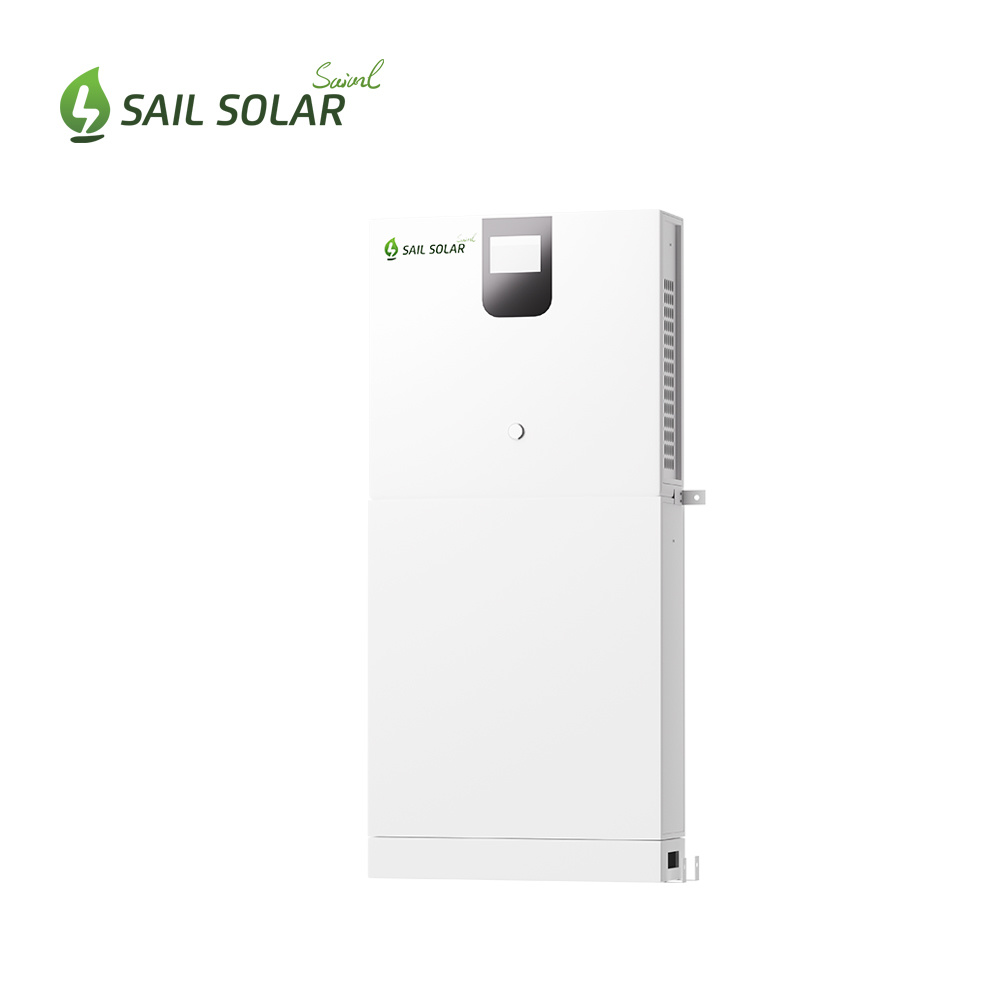

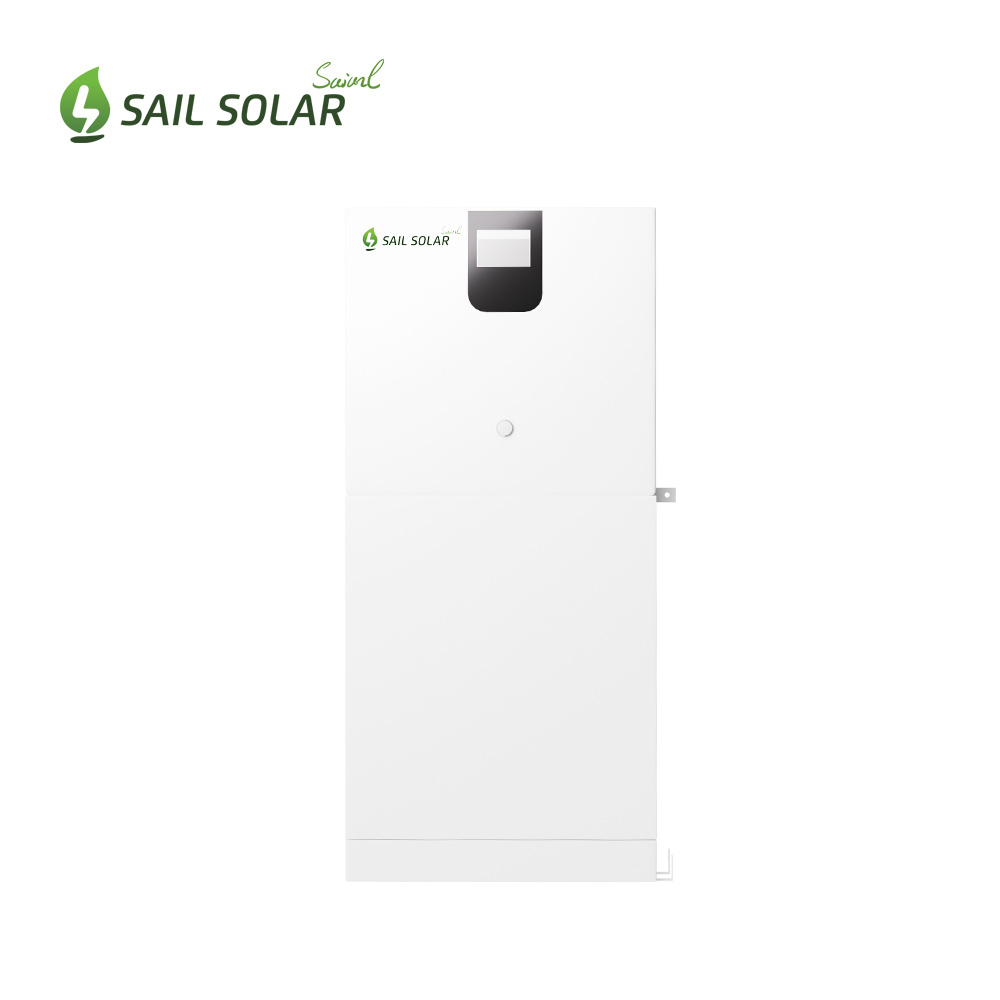

Sail Solar All In One ESS 3KW Inverter and 5KWH Lithium Battery Power Station Smart Home System

Sail Solar All In One ESS 3KW Inverter and 5KWH Lithium Battery Power Station Smart Home System

  • Frequency :

    50Hz
  • Maximum Output Current :

    30A
  • Cycle Life(+25°C 0.5C) :

    DOD 80%,10+ years design life
  • Protocol (optional) :

    RS232/RS485/CAN/BLUETOOTH/WIFI
  • Solar Charge Type :

    MPPT
  • Rated Output Power :

    5000W
  • Communication Port :

    CAN, RS485
  • Protection Class :

    IP20
  • Type :

    All-in-one

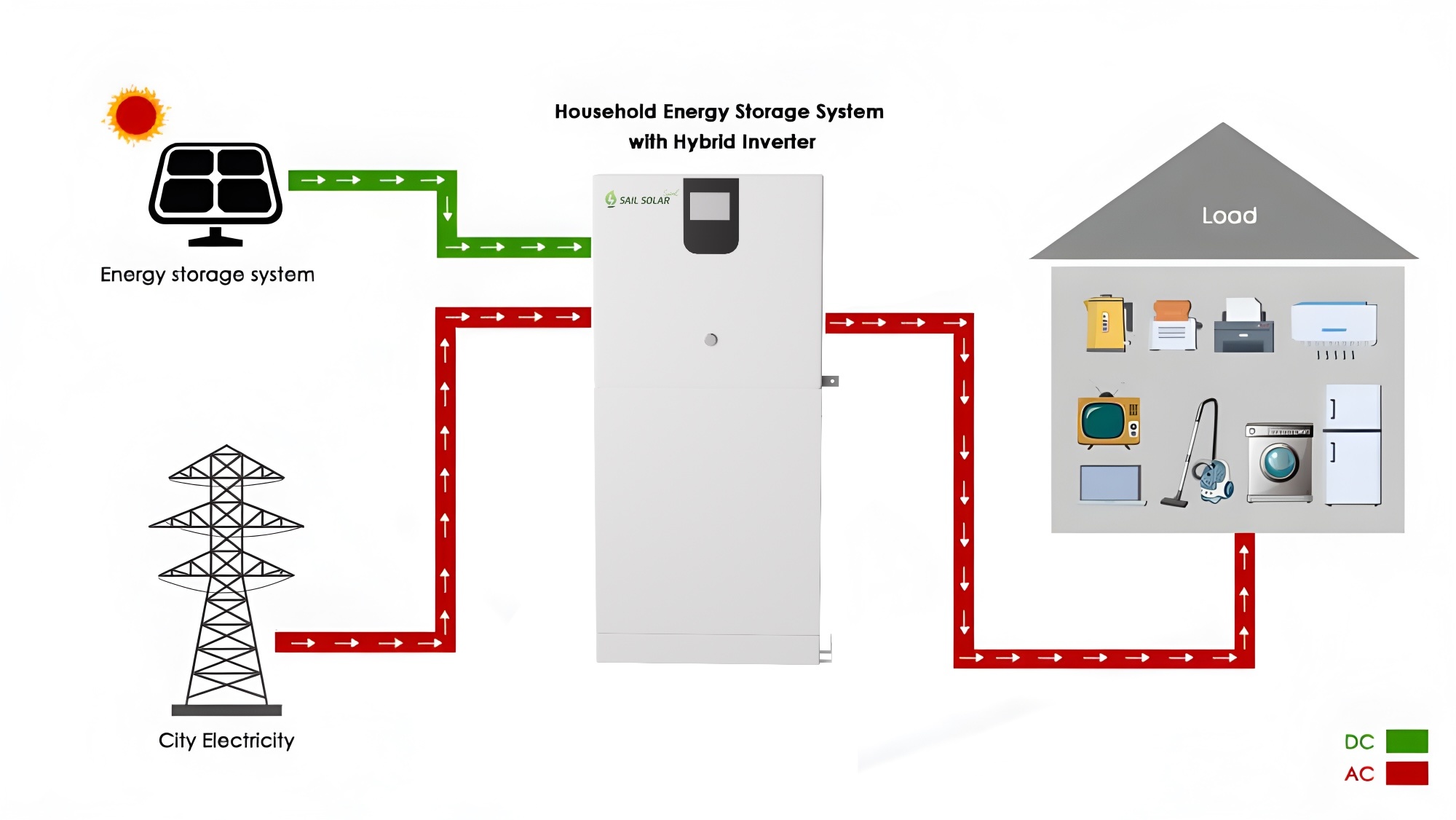

SAIL SOLAR All in One Home Use Solar Power Energy Storage System is a multi-function solar inverter/solar charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support. It is perfect backup power supply for off-grid system like household appliances, power tools, industrial equipment, and electronic audio and video equipment.

Specification

MODEL

AIO-5.12

AIO-10.24

AIO-15.36

AIO-20.48

Battery Type
LiFePO4 battery
No.of Moudle

1

2

3

4

Normal Capacity(25°c,0.2C)

5.12kwh

10.24kwh

15.36kwh

20.48kwh

Normal Voltage(dc)

51.2V

51.2V

51.2V

51.2V

Voltage Window(dc)
44.8~57.6V
Size(W/D/H)
1190x600x184mm
1800x600x184mm
1800x600x184mm
690x600x184mm
1800x600x184mm
1300x600x184mm
Weight(Nw Kg)

80

130

190

250

Normal charge/discharge current

50A

50A

50A

50A

Max.charge/discharge current

100A

100A

100A

100A

Cycle Life(+25°C 0.5C)
DOD 80%,10+ years design life
Storage Temperature
-20℃~+60°C
Safety Standard
CE/IEC/UL/UN38.3/MSDS
Protection Grade
IP20
Protocol (optional)
RS232/RS485/CAN/BLUETOOTH/WIFI
Protection
Overchange protection、Overdischange protection、 Overcurrent protection
Shortcircuit protection、Overtemperature protection
Working Temperature
Charge:0~45°c; Discharge:-10~45°C
Humidity
5%~85%
PV Charge



Solar Charge Type
MPPT
Maximum Output Power
5000W
PV Charging Current Range
0~80A
PV Operating Voltage Range
120~500V
MPPT Voltage Range
120~450V
AC Charge



Maximum Charge Power
3150W
AC Charging Current Range
0~60A
Rated input Voltage
220/230Vac
Input Voltage Range
90~280Vac
AC Output



Rated Output Power
5000W
Maximum Output Current
30A
Frequency
50Hz
Overload Current
35A
Battery Inverter Output



Rated Output Power
5000W
Maximum Peak Power
10KVA
Power Factor

1

Rated Output Voltage (Vac)
230Vac
Frequency
50Hz
Auto Switch Period
<15ms
THD
<3%

Product Description

This energy storage system is designed to excel in diverse working environments, offering exceptional adaptability and durability. Equipped with a high-quality LiFePO4 battery, it boasts a long service life of over 6000 cycles, ensuring reliable and sustained performance.

Safety is a priority, with features such as a rugged metal shell that is both waterproof and explosion-proof, making it ideal for demanding conditions.

Installation and setup are made incredibly user-friendly with its plug-and-play design, eliminating the hassle of tangled wires and removing the need for complex matching or debugging processes.

The straightforward operation allows users to get started quickly, making this system accessible even to those without technical expertise.

With a focus on safety, ease of use, and longevity, this system is a practical and efficient energy solution for both residential and industrial applications.

Sail Solar’s All-in-One Energy Storage System offers a versatile and efficient solution for both residential and commercial energy needs. With flexible configuration options of 5.1kWh, 10.2kWh, 15.36kWh, and 20.4kWh, users can easily scale their energy storage to match specific requirements. This system is built to last, with a cycle life of over 10,000 cycles under lab conditions, ensuring long-term reliability and performance. Its high battery-to-grid conversion efficiency of up to 94% allows for optimal energy utilization, maximizing the value of every watt.

Equipped with LiFePO4 battery cells, it provides enhanced safety and is free from cobalt and nickel, making it a more sustainable and eco-friendly choice. Whether for home or business, Sail Solar’s All-in-One Energy Storage System offers a comprehensive solution to help users optimize their energy structure, reduce electricity costs, and embrace a greener, more environmentally responsible approach to energy use.

Certificate

We focus on producing high-quality lithium batteries, adhering to rigorous manufacturing standards to ensure reliability, safety, and performance. Our products have been awarded various international certifications, including UN38.3, CE, IEC, UL, MSDS, and ISO, reflecting our commitment to meeting global safety and quality requirements. These certifications provide assurance that our lithium batteries are suitable for a wide range of applications and meet strict compliance guidelines. If you have any questions or specific needs regarding our products, please don’t hesitate to contact Sail Solar. We are here to help and provide the best energy solutions for your projects.
