Sail Solar delivers end-to-end solar storage solutions for residential, commercial, and industrial applications, featuring a high-performance 100kW hybrid solar system with scalable 100kWh or 200kWh battery storage, the hybrid inverter for simplified integration and high efficiency, seamless on/off-grid transition for zero interruption during outages, and programmable operation modes to optimize for self-consumption, backup, or peak shaving—making it the perfect energy solution for industry and commerce.
Specification
MODEL
SAS-100kW-HY
Model
720W Solar Panel
143 pieces
Hybrid Inverter
100KW
Lithium Battery
Customized Lithium (Lifepo4) Battery Storage System with BMS Monitoring
DC Cable 4mm2
800 Meters
MC4 Connector
80 Pairs
Mounting System
Customized for Rooftop or Ground
Optional Accessories
Lightning protection/grounding device
AC/DC Combiner box
AC Cable
Smart Meter
Product Description

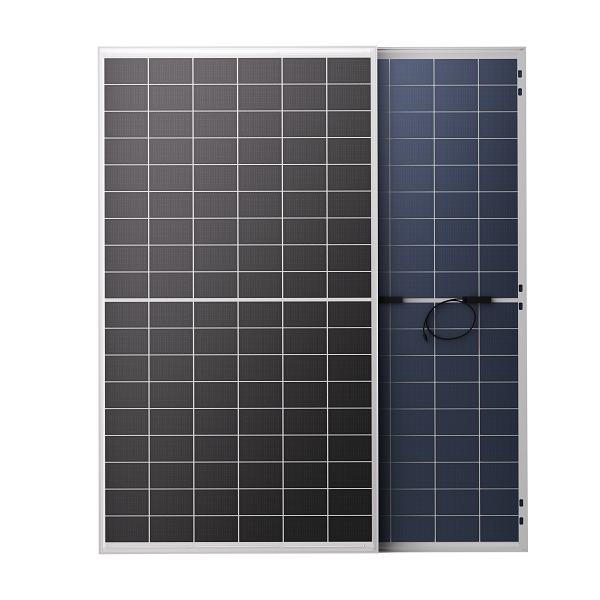

Mono N-type High Efficiency Half Cell/Bifacial Solar Modules
N-type bifacial double-glass solar modules offer significant advantages in PV systems, delivering higher energy yields compared to traditional modules. Their N-type cells provide superior efficiency, lower degradation rates, and better performance in low-light conditions. The bifacial design captures sunlight on both sides, increasing power generation by up to 30% when combined with reflective surfaces. Additionally, the dual-glass construction enhances durability, weather resistance, and long-term reliability, making them ideal for harsh environments. With a longer lifespan and improved temperature coefficient, these modules ensure higher ROI and lower LCOE over the system's lifetime

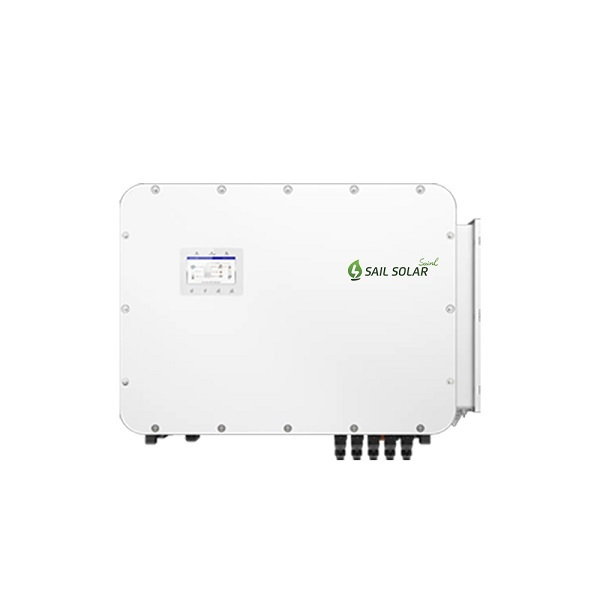

Hybrid Inverter
This is a hybrid solar inverter with high voltage, three-phase energy storage for commercial applications. The inverter series, which boasts a maximum charge/discharge current of 100A+100A across two independently controlled battery ports, has 10 integrated MPPTs with a string current capacity of up to 20A – ensuring unmatched power delivery. Whether for on or off-grid applications, this solar inverter supports parallel operation of up to six units, with a backup port capable of supporting 2.0 times overload for short durations. This latest range is compatible with an array of batteries, thanks to its wide voltage range, and offers peak shaving control in both self-use and generator modes.

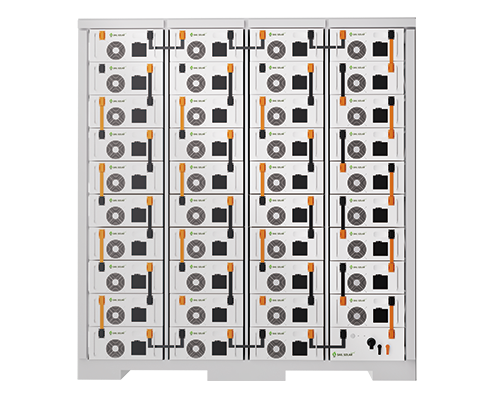

Lithium Battery
This high-voltage lithium battery pack offers customizable module options, such as nominal voltage of 716V and a capacity of 280Ah, delivering a total energy of approximately 200 kWh. Designed for large-scale energy storage systems, it offers high energy density, long cycle life, a
nd excellent safety performance. Ideal for commercial and industrial applications such as solar-plus-storage systems, peak shaving, and backup power.

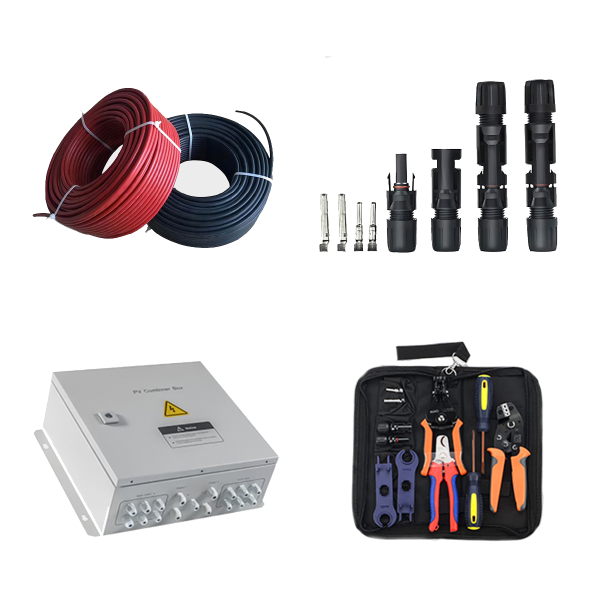

Accessories
Solar accessories include PV DC cables (4mm², 6mm², 10mm², etc.), AC cables, MC4 solar-compatible connectors, and a customized PV combiner box for
solar panel connections—featuring anti-reverse diodes, DC circuit breakers, DC fuses, surge protection devices, and lightning protection—all housed in an IP65
waterproof enclosure for outdoor PV systems, along with essential solar panel installation tools.

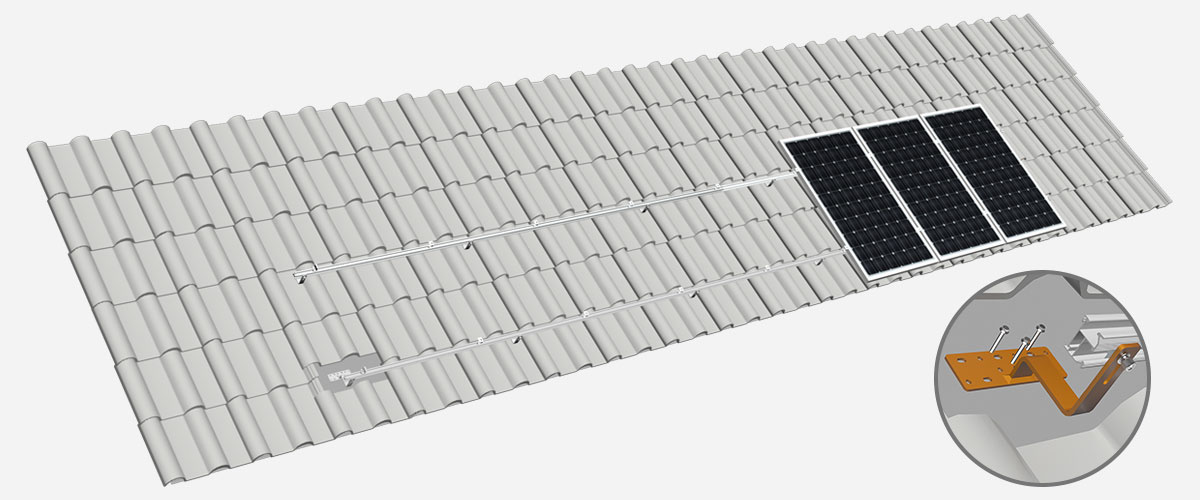

Mounting Rackets
The solar mounting structure is custom-designed to suit various roof materials, ensuring optimal compatibility and secure installation. Each system is tailored to the specific roof type—whether tile, metal, concrete, or asphalt—providing durability, weather resistance, and maximum energy efficiency for your PV array
This advanced energy storage solution features a high-efficiency 100kW hybrid inverter paired with a scalable 100-200kWh high-voltage lithium battery (LiFePO4), delivering robust performance for commercial applications. The system seamlessly integrates solar power, battery storage, and grid electricity, enabling intelligent energy management and uninterrupted power supply. With CAN/RS485 communication ports, users gain real-time monitoring and control to optimize self-consumption and reduce reliance on the grid.
Engineered for durability and adaptability, the system supports flexible capacity expansion (100kWh, 150kWh, or 200kWh) to meet growing energy demands. Its high-voltage architecture ensures higher efficiency, longer lifespan, and reduced energy loss compared to low-voltage alternatives. Whether for peak shaving, backup power, or off-grid use, this solution offers a future-proof, cost-effective pathway to energy independence.
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
