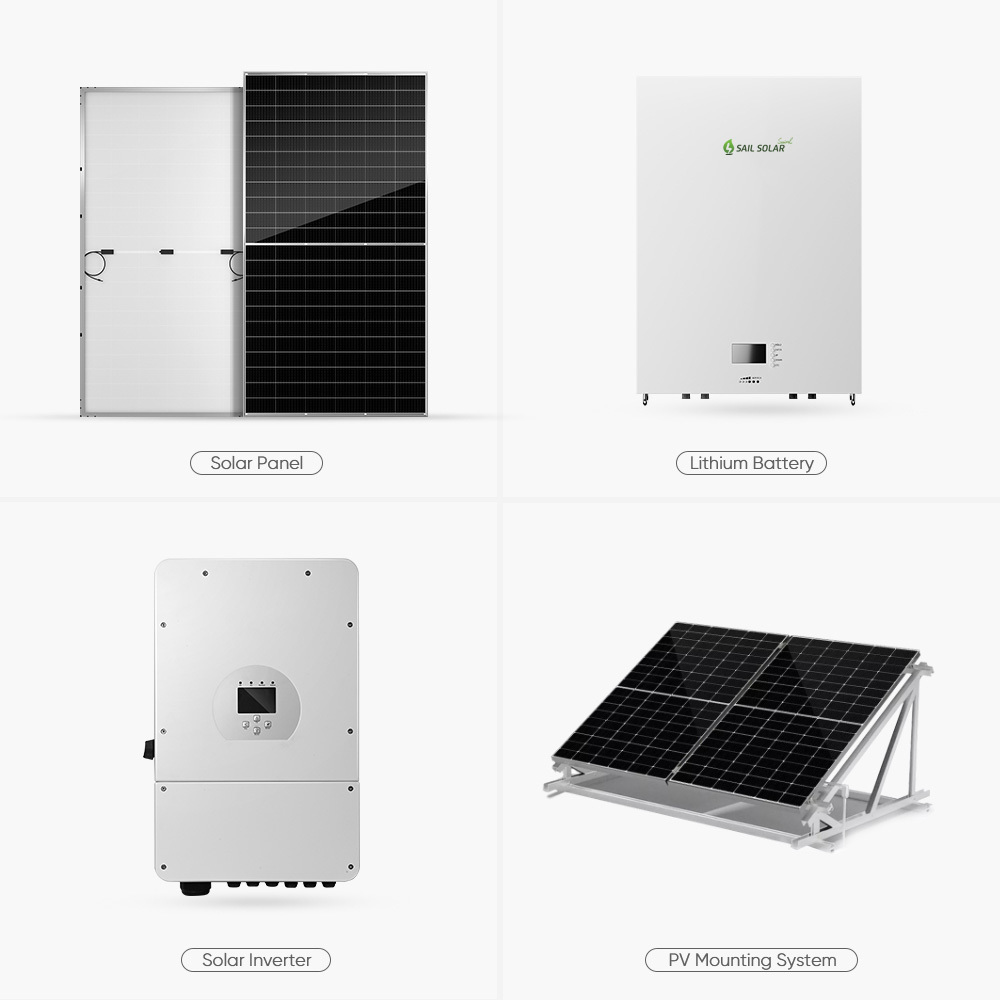

Sail Solar 10kw hybrid solar power system is made up of 18 pieces 550watt solar panels, a 10kw hybrid inverter, and one or more 10kWh lithium batteries. The batteries are essential if you often use electricity at night. The main source of power for the system is the electricity generated by the solar panels during the day, and the excess power is stored in the solar batteries and used at night. And the excess power is fed back to the grid company. If the solar and battery power is not enough to supply the load, utility power is supplemented. The output of the system is single-phase AC, if you need three-phase output we have other models of inverters that can meet your needs.
Ideal for diverse applications - from remote cabins and office spaces to primary residences - this versatile system adapts to meet virtually any installation requirement, offering reliable and efficient energy solutions.
Specification
MODEL
SAS-10kW-HY
Model
550W Solar Panel
18 pieces
Hybrid Inverter
10KW
Lithium Battery
Customized Lithium (Lifepo4) Battery Storage System with BMS Monitoring
DC Cable 4mm2
200 Meters
MC4 Connector
40 Pairs
Mounting System
Customized for Rooftop or Ground
Optional Accessories
Lightning protection/grounding device
AC/DC Combiner box
AC Cable
Smart Meter
Product Description

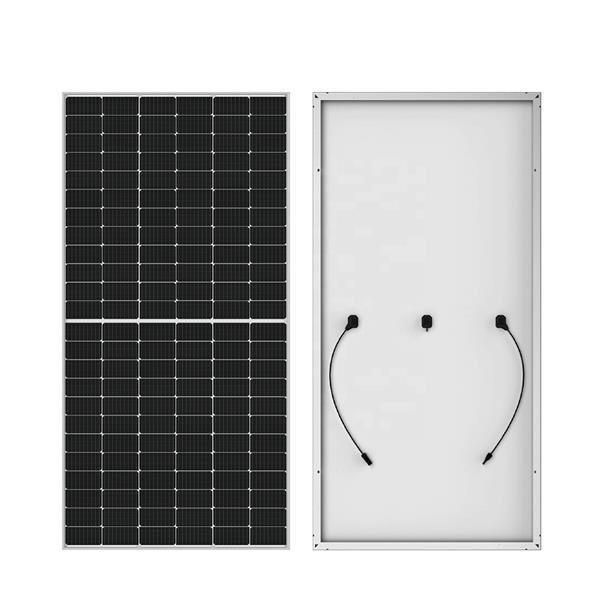

Mono N-type High Efficiency Half Cell/Bifacial Solar Modules
> 30 years Warranty > Highest conversion efficiency over 22% > Anti-reflective and anti-soiling surface power loss from dirt and dust > Excellent mechanical load resistance > PID Resistant,High salt and ammonia resistance

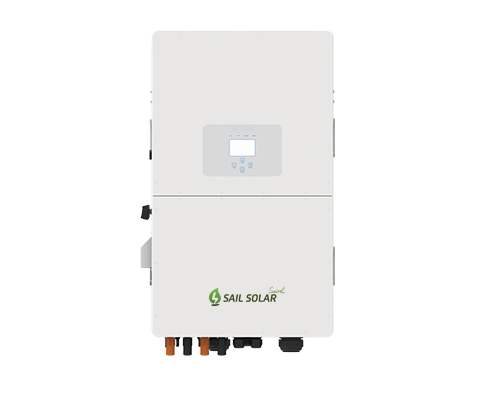

Hybrid Inverter
＞ Automatic Switch to charge loads, batteries or from Grid backup with priority setting function > Compatible with Gel and Lithium battery > Comprehensive WIFI monitor for electricity production and consumption data
＞Built-in MPPT solar charge controller
＞Parallel operation with up to multiple units
＞Selectable input voltage range for commercial and industrial appliance

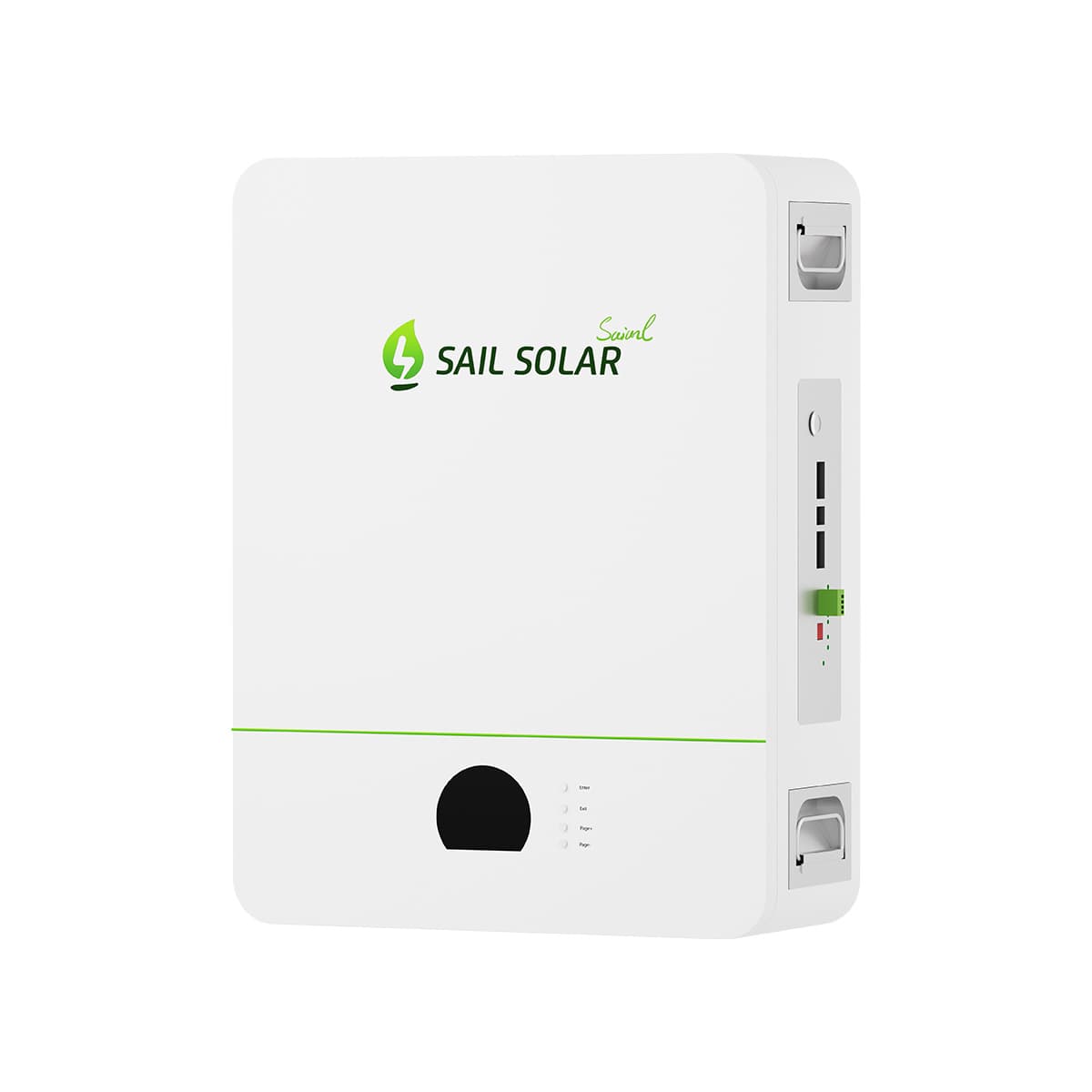

LITHUIM BATTERY
＞Lifepo4 battery cells
＞Flexible capacity options, 5kwh~20kwh
＞EU, America market standard
＞Built-in BMS, connect in parallel
＞More than 6000 times cycle

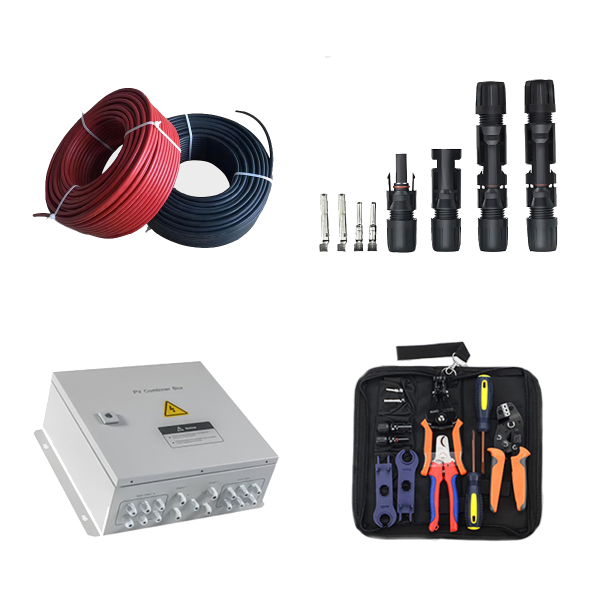

Accessories
> PV DC Cable 4mm2 6mm2 10mm2, etc
> AC Cable
> MC4 solar compatible connectors
> Customized pv combiner box for solar panels connection > Anti-Reverse diode/ DC Circuit Breaker/DC fuse/ Surge protection device Included > Lighting Protection > IP65 Waterproof > Applicable for outdoor PV systems > Solar panel install tools

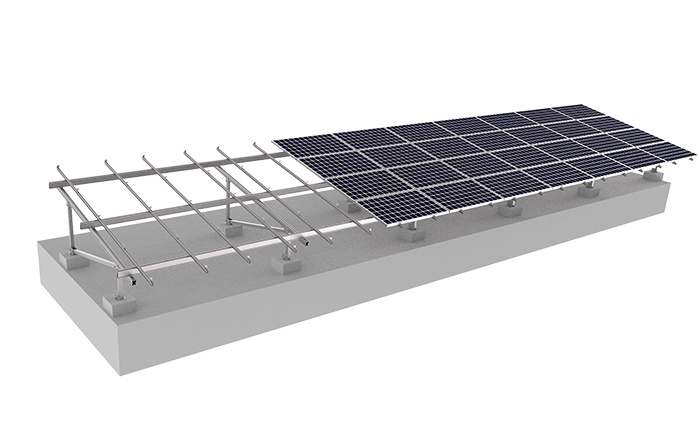

Mounting Rackets
> Residential Roof(Pitched Roof) > Commercial Roof(Flat roof&workshop roof) > Ground Solar Mounting system > Vertical wall solar mounting system > All aluminum structure solar mounting system > Car parking solar mounting system
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
