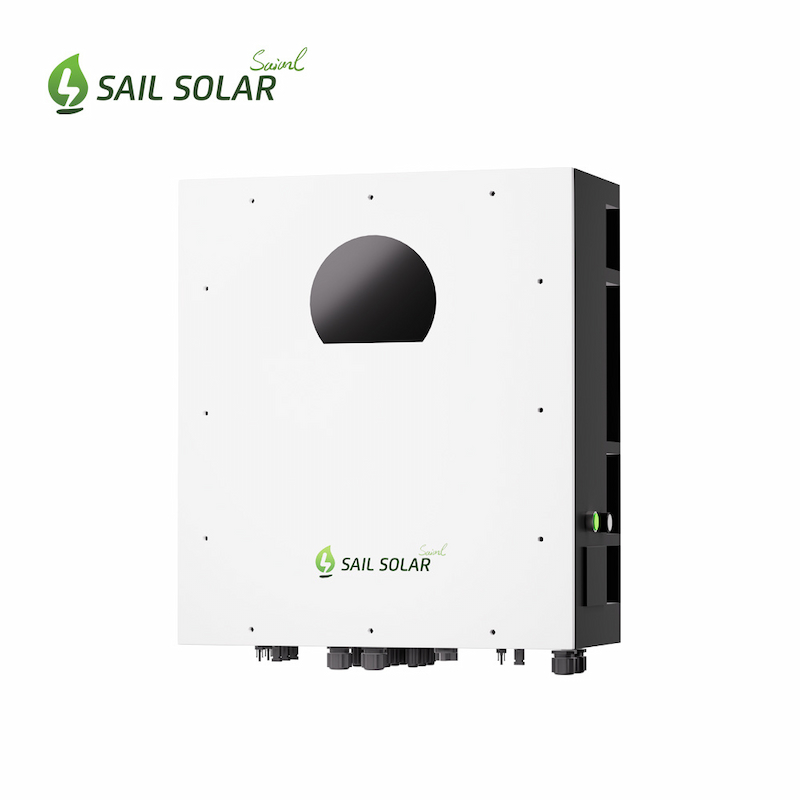

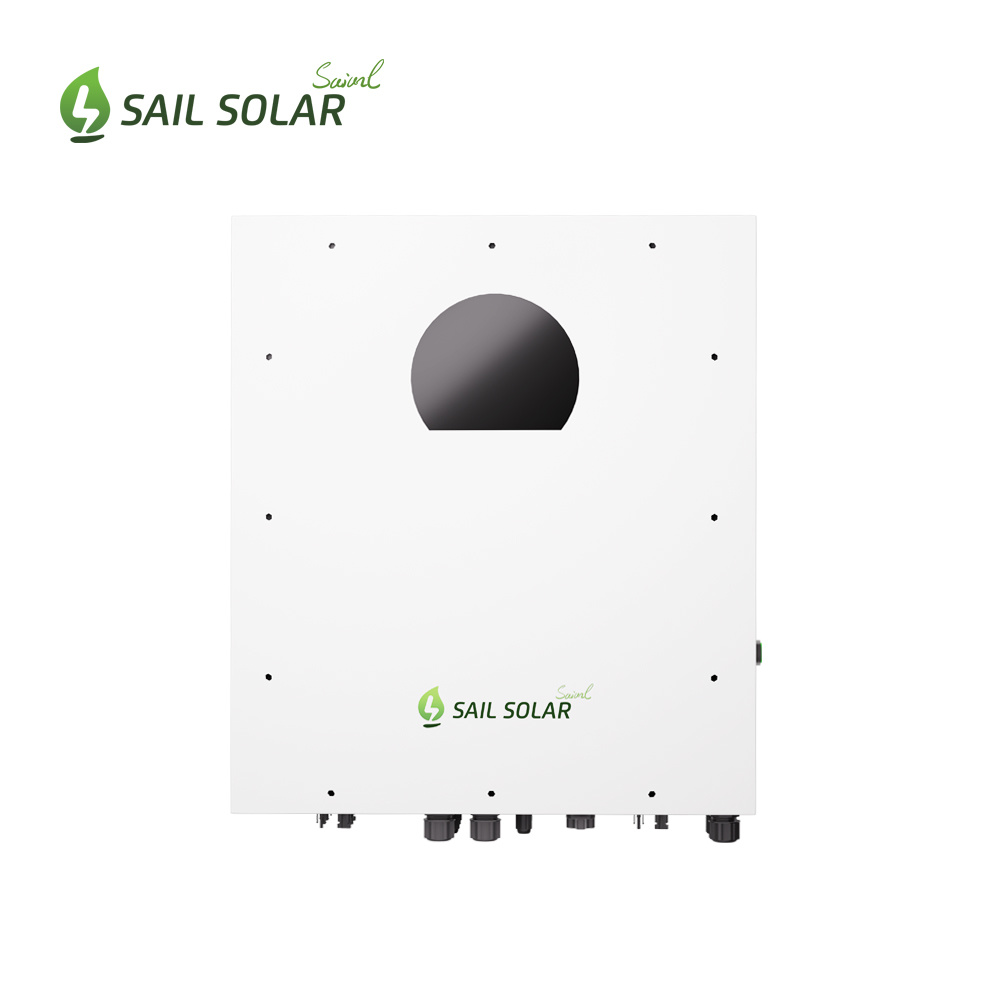

Sail Solar Three Phase Solar Power Inverter 12Kw PV Energy Storage Hybrid Inverters For Home
Payment :
T/T, L/C, Western UnionShipping Port :
ShanghaiParallel :
6 UnitsMonitoring :
WifiMax Power :
12000WOutput Voltage :
380VWarranty :
5 YearsCertificate :
CECommunication :
BMS (RS485)Protection :
IP65Order MOQ :
1Type :
Hybrid AC/DC InverterItem No. :
Helios-12KLP3-EUHelios-12KLP3-EU hybrid inverter supports parallel operation of up to 6 units, offers 150% unbalanced load support, handles a maximum PV input current of 26A, features dual outputs for smart load management, is IP65 waterproof and dustproof, and includes a reserved communication port for BMS (RS485).
MODEL |
Helios-12KLP3-EU
|
Maximum Pv Input Power |
16000 W
|
Rated Output Power |
12000W |
Maximum Charging Power |
12000W |
PV INPUT (DC)
|
|
Maximum DC Voltage
|
1000 VDC
|
Start-up Voltage / Initial Feeding Voltage
|
320 VDC / 350 VDC
|
MPP Voltage Range
|
350 VDC ~ 950 VDC
|
Number of MPP Trackers / Maximum Input Current
|
2 / A: 26A, B: 26A
|
Number of Strings Per MPP Tracker
|
A: 2, B: 2
|
GRID OUTPUT (AC)
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
Output Voltage Range
|
184 - 265 VAC per phase
|
Nominal Output Current
|
17.4 A per phase
|
AC INPUT
|
|
AC Start-up Voltage / Auto Restart Voltage
|
120 - 140 VAC / 180 VAC
|
Acceptable Input Voltage Range
|
170 - 290 VAC per phase
|
Maximum AC Input Current
|
40 A
|
BATTERY MODE OUTPUT (AC)
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
Efficiency (DC to AC)
|
91%
|
BATTERY & CHARGER
|
|
Battery Voltage Range
|
40 ~ 62 VDC
|
Maximum Charging Current
|
250 A
|
PHYSICAL
|
|
Size, D x W x H (mm)
|
255 x 660 x 750
|
Net Weight (kgs)
|
75
|
INTERFACE
|
|
Communication Port
|
RS-232, RS-485, USB, CAN and Wi-Fi
|
Intelligent Slot |
Optional for SNMP and Modbus cards
|
ENVIRONMENT
|
|
Humidity
|
0 ~ 100% RH (Non-condensing)
|
Operating Temperature
|
-25 to 60°C, > 45°C power derating
|
Altitude
|
0 ~ 1000 m**
|
PROTECTION & CERTIFIC
ATE
|
|
Safety
|
IEC 62109, IEC 62116, IEC 61727, IEC 61683
|
Protection Grade
|
IP65
|
Grid Connection Standard
|
NRS097-2-1:2017, VDE-AR-N4105
|
![]() |

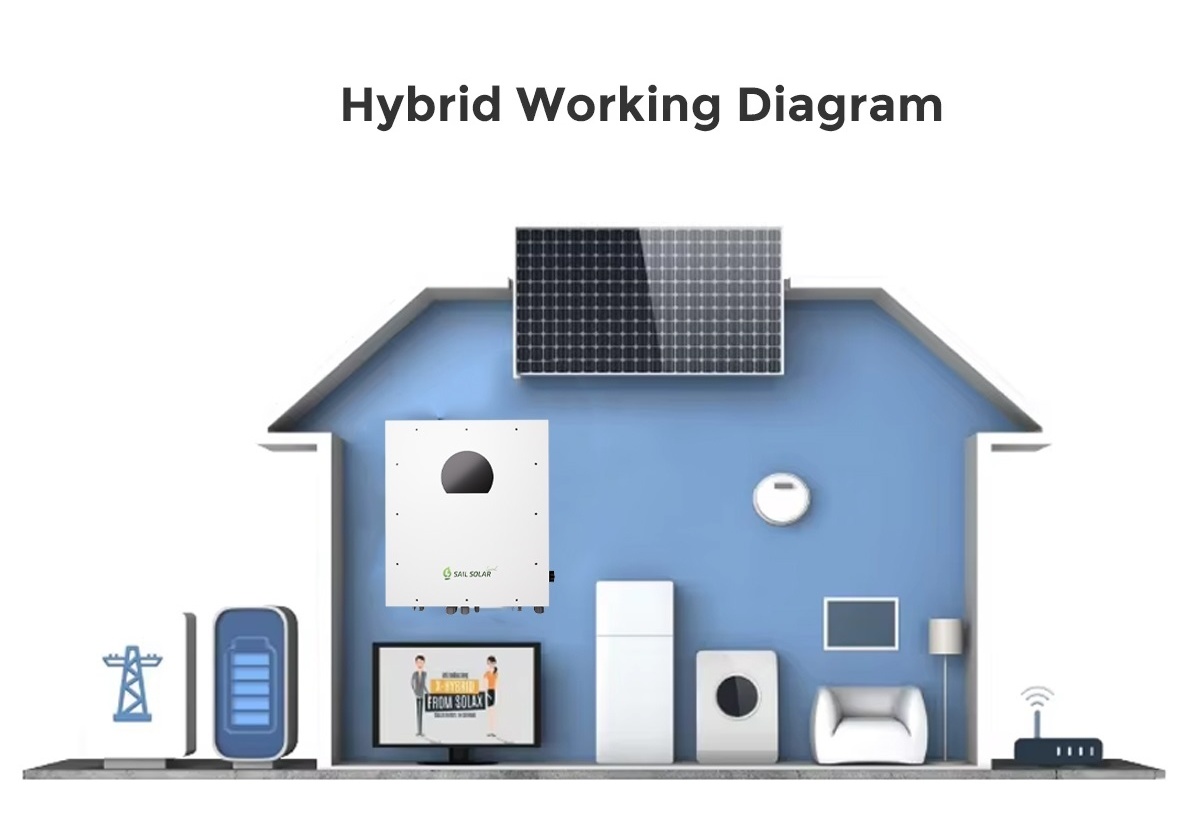

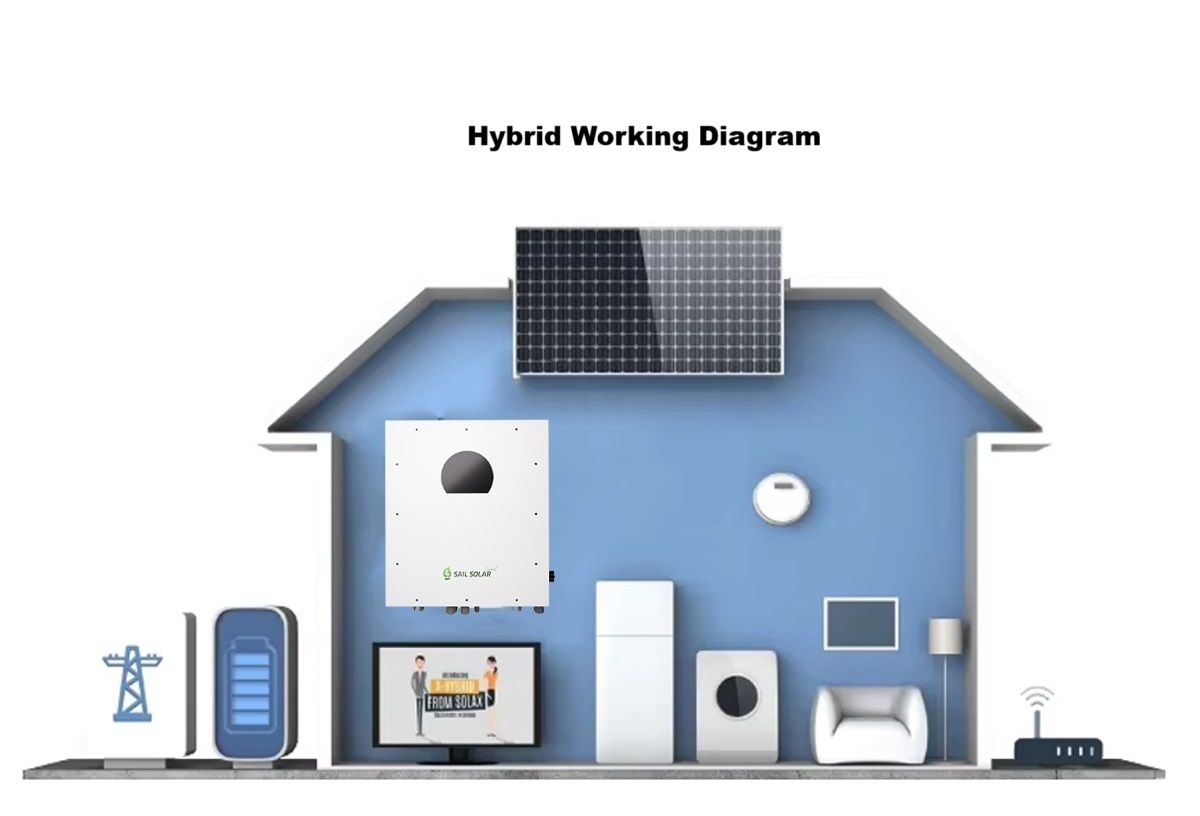

Helios-12KLP3-EU is a hybrid inverter that combines a solar system, AC utility, and battery power source to supply continuous power. It is suitable for remote areas where the cost of utility is too high or emergency usage when the utility is not stable.
Additionally, it allows excess energy to be fed back into the grid, facilitating a two-way flow of electricity and optimizing energy utilization. Our advanced hybrid technology will enable you to harness the full potential of your solar panels while providing the flexibility to store excess energy for later use. This means more savings on your electricity bills and a greener footprint for your household.
|
One of the most significant advantages of inverter paralleling is improved system reliability. By connecting multiple inverters in parallel, you create a redundant system that continues to operate even if one inverter fails. This ensures continuous power supply and minimizes downtime, making it ideal for critical applications where reliability is paramount.

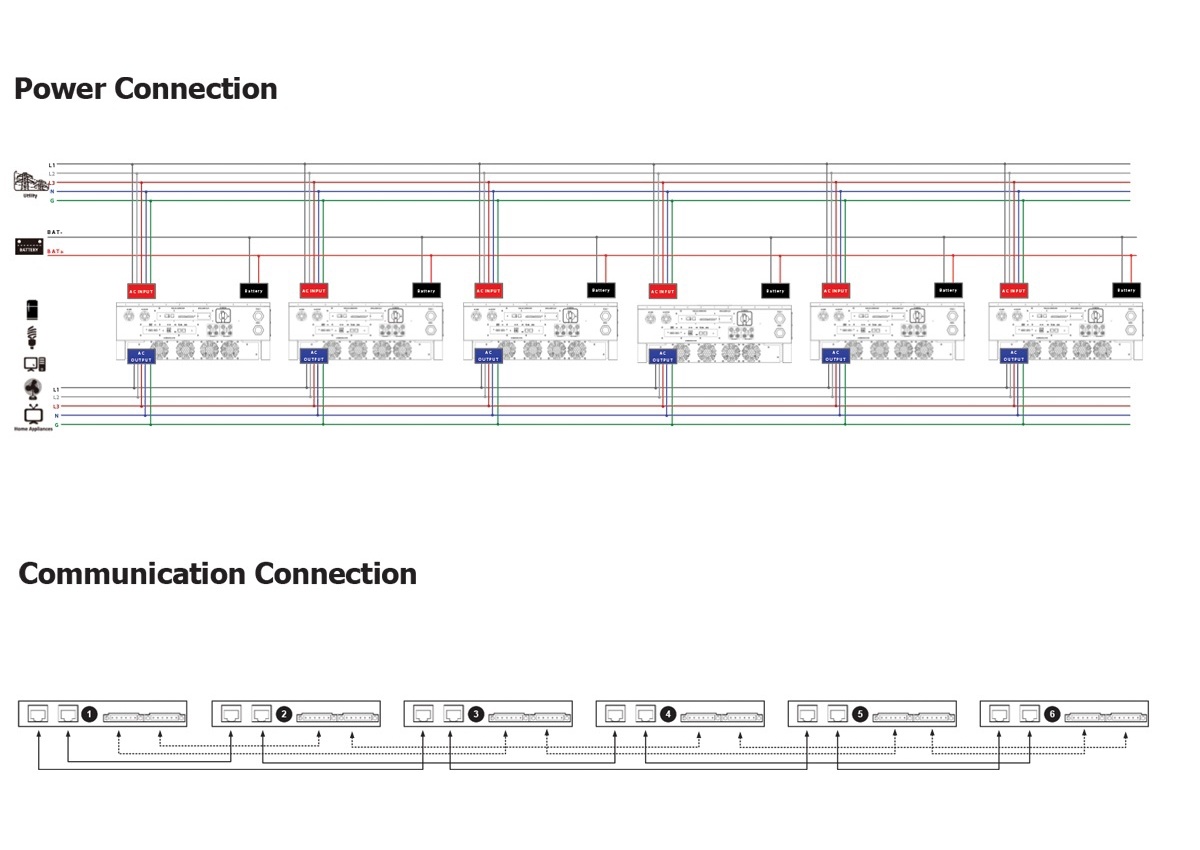

Helios-12KLP3-EU hybrid solar inverter can support max 6pcs in Parallel, with paralleling inverters allows you to achieve higher total power output, which is essential for high-power loads. Whether you are running heavy machinery or powering large commercial spaces, the combined output of multiple inverters ensures that your energy needs are met without compromise.
|
![]() |
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01
Submit Service Requests
Submit your service requests at any time via email, online customer service, or mobile app.
02
Rapid Response
Our service team will immediately respond to your requests and communicate the details of the issue with you.
03
On-Site Service or Remote Support
Depending on the nature of the problem, provide on-site service or remote technical support.
04
Problem Resolution
Our goal is to completely resolve your issue within 24 hours.
05
Follow-Up
After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
