Name: Sail Solar 512V High Votage Lithium Battery Rack Mounted with 200Ah Lifepo4 Battery Pack
Availability: InStock

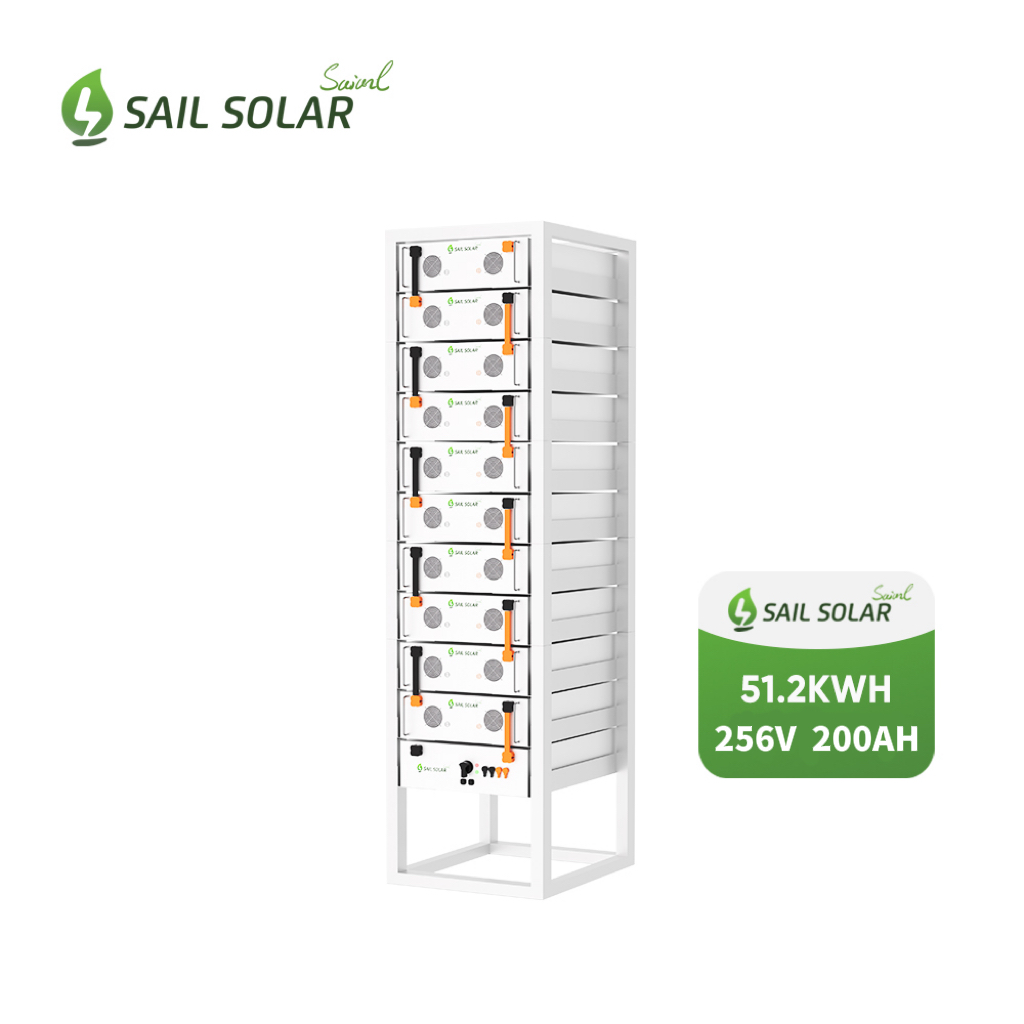

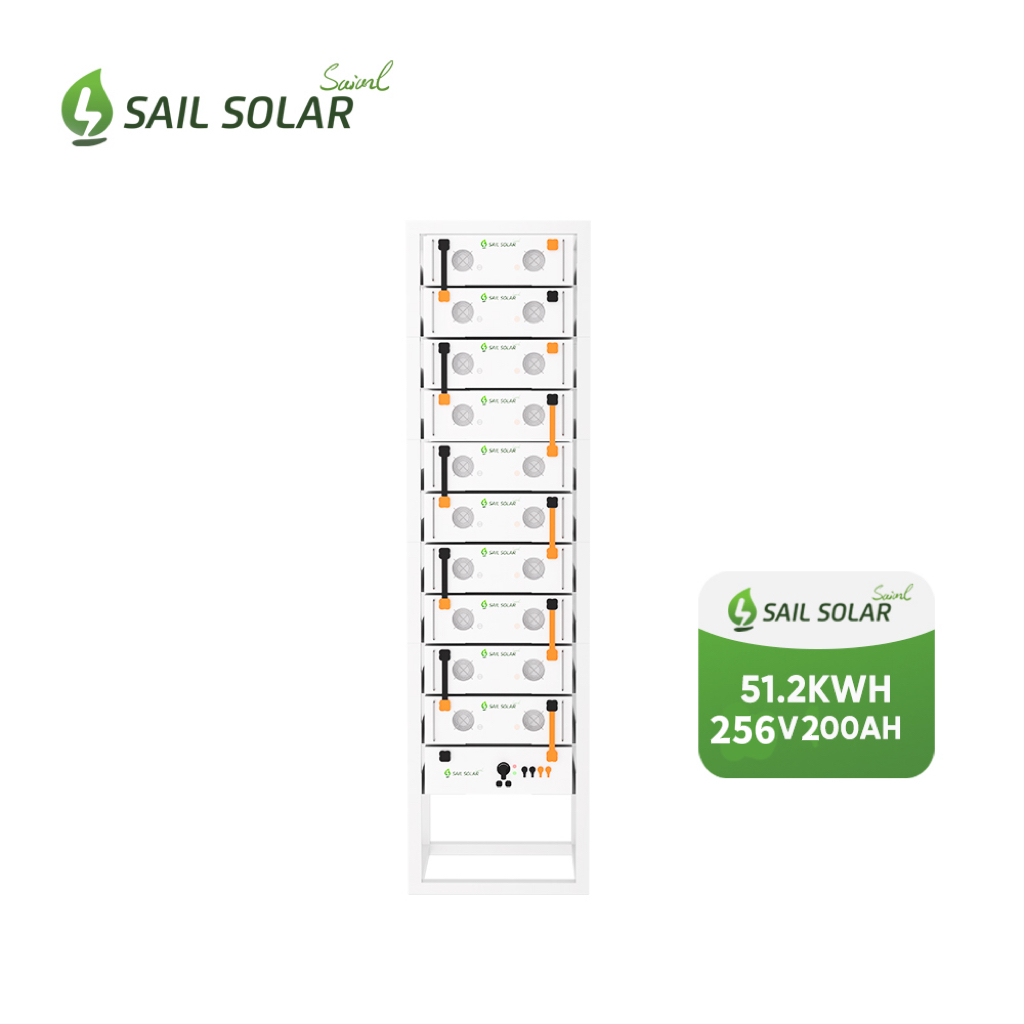

Sail Solar 512V High Votage Lithium Battery Rack Mounted with 200Ah Lifepo4 Battery Pack

رقم الصنف :
SAS-51200-R
ماركة :
Sail Solar
نوع البطارية :
Lithium Ion, LiFePO4
نوع التبريد :
Air/Liquid Cooling
منفذ الاتصالات :
RS232/RS485/CAN/BLUETOOTH/WIFI
شهادة :
CE, MSDS, UN38.3
دورة الحياة :
6000 cycles
ضمان :
10 Years

فئات المنتجات

كيف يمكننا مساعدتك؟

يمكنك التواصل معنا بأي طريقة تناسبك. نحن متاحون على مدار الساعة طوال أيام الأسبوع عبر البريد الإلكتروني أو الهاتف.

اتصل بنا

منتجات جديدة

Specification

MODEL	SAS-153.60KWH-R	SAS-163.84KWH-R
Battery Type	LiFePO4 battery
Nominal Voltage	51.2V
Normal Capacity	200Ah
Energy	10.24Kw/h
Efficiency of Charge	99.5%@0.2C
Efficiency of Discharge	96-99%@1C
Charge Voltage	58.4±0.5V
Module Size(mm)	792483245(DWH)
Net weight(kg)	108
Cell&Method	EVE302V314Ah-16S1P
Interal Resistance	≤50mΩ
Battery rack specification
Configuration	15 battery modules+1 BPU(768V 200Ah)	16 battery modules+1 BPU(819.2V 200Ah)
Energy	153.60Kw/h	163.84Kw/h
Discharge Cut-Off Voltage(V)	660	704
Charge Cut-Off Voltage(V)	852	908.8
Recommend Charge/Discharge Current(A)	100
Max.Charge/Discharge working Current(A)	200
Protocol(optional)	RS232/RS485/CAN/BLUETOOTH/WIFI
Working Temperature	0℃~50℃ Charge-10℃~50℃ Discharge
Certification	CE/IEC/UL/UN38.3/MSDS
Cycle Life	6000 cycles @ 0.5C 80% D.O.D
Series	Max Support 16 Units in Parallel
Rack Size(mm)	1080800650	10808001250
Net Weight(kg)	530	930
Protection	Build in smart BMS, Breaker
Protection Grade	IP20(IP54 is optional)
Humidity	5%~95%
Altitude	≤2000m

Product Description

Sail Solar's high voltage battery system is a fully integrated energy storage solution, combining performance, safety, and durability in one package. Built with advanced lithium-ion battery technology, it provides stable power, high energy density, and dependable operation.

The system easily charges from the grid or solar panels, making it a practical choice for businesses and factories that need a reliable power supply.

Composed of 51.2v 314ah(16kwh) battery modules, it offers scalable capacity. These batteries are designed to last over 10 years while maintaining high efficiency and consistent output, ensuring a solid long-term investment for sustainable energy independence.

Sail Solar high-voltage lithium batteries are fully compatible with most mainstream solar inverters, including top brands such as Deye, Growatt, Goodwe, SRNE, Solis, EAST, and MEGAREVO. For distributors and installers working with these leading inverter brands, Sail Solar provides a reliable, plug-and-play battery solution that guarantees seamless integration and stable, long-lasting performance.

--We customize each high-voltage lithium battery to fit your specific needs — whether in configuration, capacity, or performance.

--Every battery we make uses only A+ grade cells — no used or refurbished parts. Before shipping, each unit goes through multi-stage testing. We check cell voltage and current, overall battery performance, and run full charge-discharge cycles to ensure reliability and safety.

--This strict quality control meets the standards of mid-to-high-end applications, giving you confidence in every battery we deliver.

Certificate

Our lithium battery products have been exported to more than 100 countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, Philippines, Saudi Arabia, South Africa, Nigeria. Products comply with mainstream market certifications, including UL, CE, ISO, MSDS, UN38.3, etc.
