Residential Hybrid Inverter

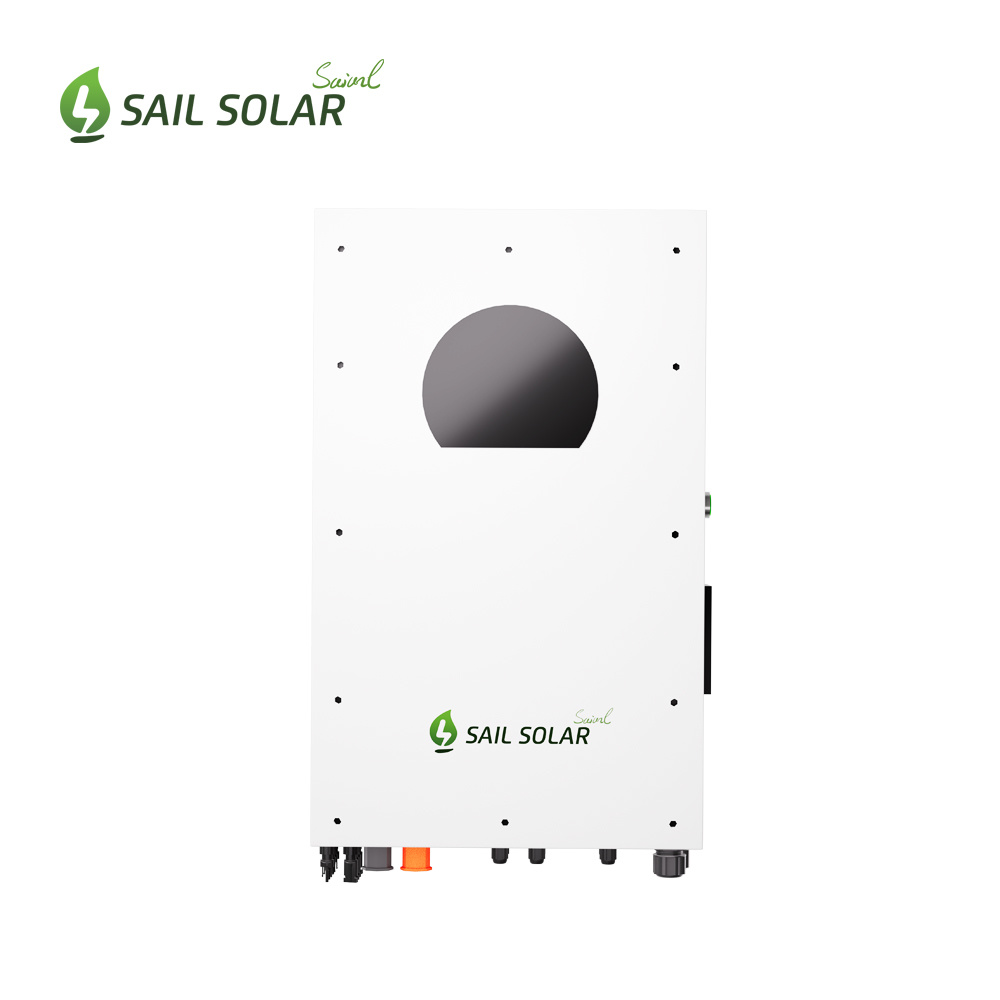

Home Smart Energy System Inverters 8Kw Three Phase High Frenquency Hybrid Solar Power Inverter

Home Smart Energy System Inverters 8Kw Three Phase High Frenquency Hybrid Solar Power Inverter

  • Payment :

    T/T, L/C, Western Union
  • Shipping Port :

    Shanghai
  • Parallel :

    6 Units
  • Monitoring :

    Wifi
  • Max Power :

    8000W
  • Output Voltage :

    380V
  • Warranty :

    5 Years
  • Certificate :

    CE
  • Communication :

    BMS (RS485)
  • Protection :

    IP65
  • Order MOQ :

    1
  • Type :

    Hybrid AC/DC Inverter
  • Item No. :

    Helios-8KLP3-EU

Helios-8KLP3 h ybrid Inverter supports parallel operation of up to 6 units, features two independent AC power sources with automatic switching, includes built-in WiFi for mobile monitoring via an available app, offers 150% unbalanced load support, allows user-adjustable charging current and voltage, and has a reserved communication port for BMS (RS485).

Specification

MODEL

Helios- 8KLP3-EU

Maximum Pv Input Power

12000 W

Rated Output Power

8000 W

Maximum Charging Power

8000 W
PV INPUT (DC)

Maximum DC Voltage
900 VDC
Start-up Voltage / Initial Feeding Voltage
150 VDC / 150 VDC
MPP Voltage Range
150 VDC ~ 850 VDC
Full MPP Voltage Range
400 VDC ~ 850 VDC
Number of MPP Trackers / Maximum Input Current
2 / A: 15A, B: 15A
GRID OUTPUT (AC)

Nominal Output Voltage
230 VAC (P-N) / 400 VAC (P-P)
Output Voltage Range
184 - 265 VAC* per phase
Nominal Output Current
11.6 A per phase
AC INPUT

AC Start-up Voltage / Auto Restart Voltage
120 - 140 VAC per phase / 180 VAC per phase
Acceptable Input Voltage Range
170 - 290 VAC per phase
Maximum AC Input Current
40 A
BATTERY MODE OUTPUT (AC)

Nominal Output Voltage
230 VAC (P-N) / 400 VAC (P-P)
Efficiency (DC to AC)
>93%
BATTERY & CHARGER

Battery Voltage Range
40 ~ 60 VDC
Maximum Charging Current
200 A
Maximum Charging Current
160 A
PHYSICAL

Size, D x W x H (mm)
247 x 500 x 650
Net Weight (kgs)
50
INTERFACE

Communication Port
RS-232, RS-485, USB, CAN and Wi-Fi
Intelligent Slot
Optional for SNMP and Modbus cards
ENVIRONMENT

Humidity
0 ~ 100% RH (Non-condensing)
Operating Temperature
-25 to 60°C, > 45°C power derating
Altitude
0 ~ 1000 m**
PROTECTION & CERTIFICA TE

Safety
IEC 62116, IEC 62727, IEC 61683, IEC 62109, IEC 61000-6-2:2019, IEC 61000-6-4:2019,
IEC 61000-3-11:2019, EN 61000-3-12: 2011
Protection Grade
IP65
Grid Connection Standard
NRS097-2-1:2017, VDE-AR-N4105

Application

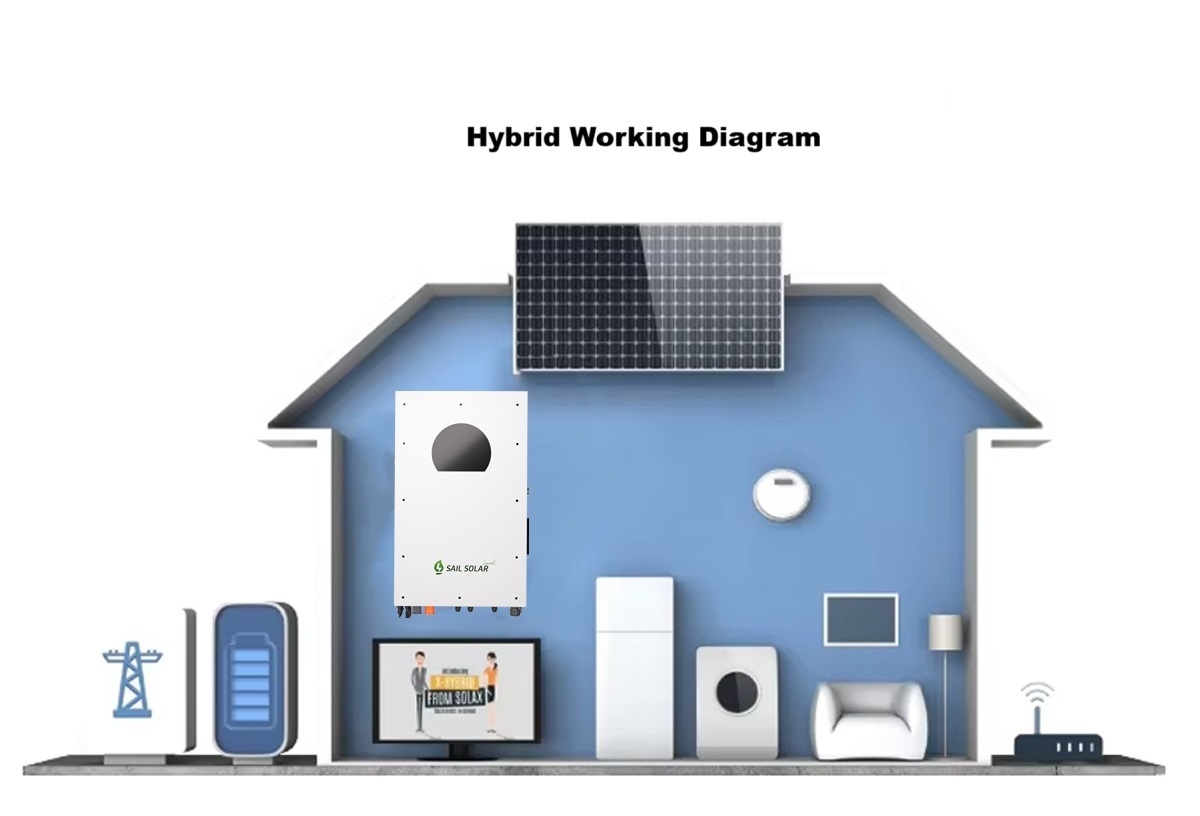

Helios-8KLP3-EU hybrid solar inverters are designed for both grid-tied and off-grid solar power systems. They combine the functions of a grid-tied inverter and a battery charger in a single unit, making them a versatile and flexible solution. Hybrid inverters can optimise the power output from solar panels, store excess energy in batteries, and provide backup power during outages. They offer the convenience of grid-tied systems with the security of off-grid systems, making them an ideal choice for homes and businesses that want to be self-sufficient while still having a connection to the grid. Hybrid solar inverters are a cost-effective and environmentally friendly solution for those looking for energy independence and reliability.

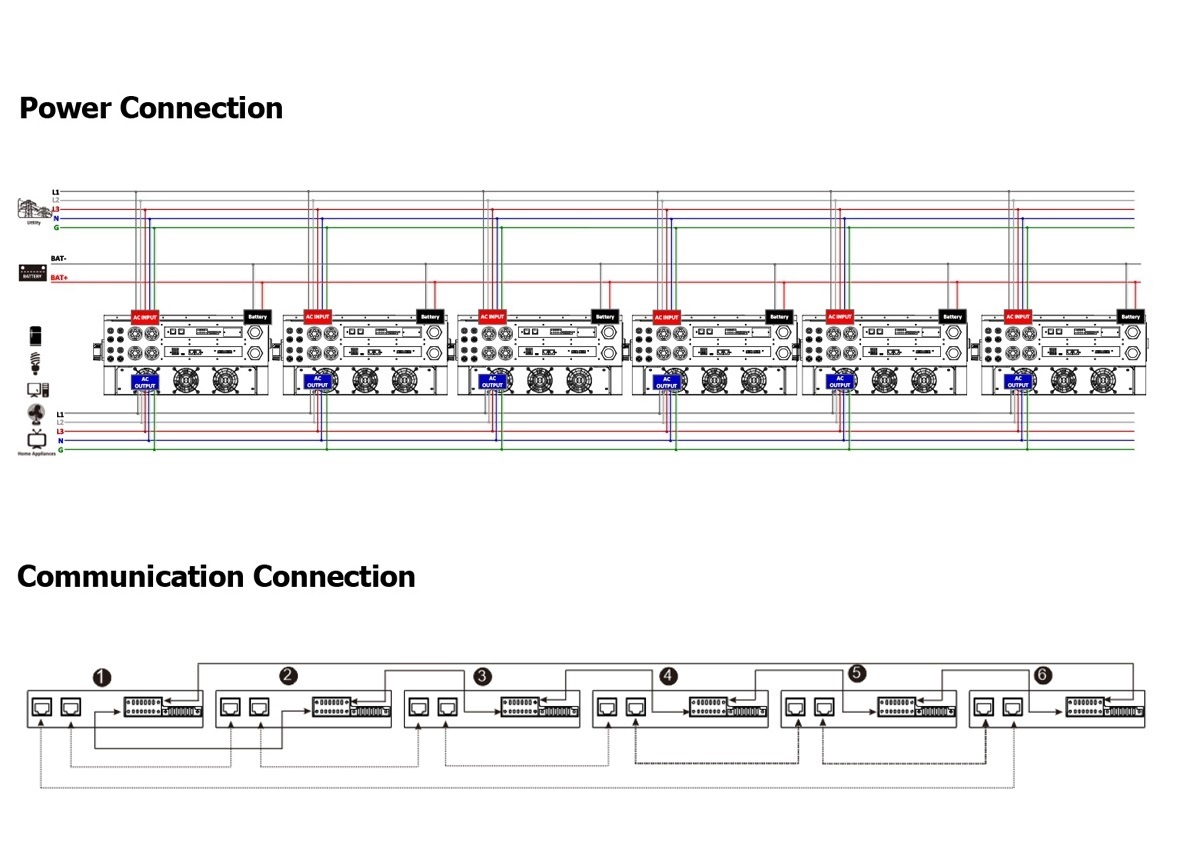

Helios-8KLP3 Hybrid Solar Inverter paralleling offers unmatched scalability, allowing you to easily expand your system as your energy demands grow. You can start with a smaller setup and add more inverters over time, ensuring that your system always matches your current needs. This flexibility makes it an excellent choice for both residential and commercial installations.

When inverters are operated in parallel, the load is distributed evenly across all units, which can lead to optimized overall system efficiency. Each inverter operates at its optimal performance level, reducing energy wastage and maximizing the conversion of DC to AC power.
